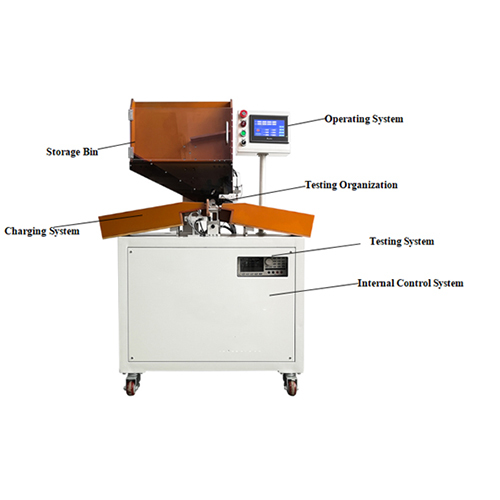

Automatic 5 Channel Lithium-Ion Battery Cylindrical Cell Sorter Testing Separation Machine
Product Details:
- Product Type Testing Separation Machine
- Automatic Grade Automatic
- Voltage AC220V,50Hz Volt (v)
- Dimension (L*W*H) 980x520x1360mm Millimeter (mm)
- Color White
- Click to View more
Automatic 5 Channel Lithium-Ion Battery Cylindrical Cell Sorter Testing Separation Machine Price And Quantity
- 1 Unit
Automatic 5 Channel Lithium-Ion Battery Cylindrical Cell Sorter Testing Separation Machine Product Specifications
- Testing Separation Machine
- AC220V,50Hz Volt (v)
- Automatic
- 980x520x1360mm Millimeter (mm)
- White
Automatic 5 Channel Lithium-Ion Battery Cylindrical Cell Sorter Testing Separation Machine Trade Information
- 10 Days
- All India
Product Description
Features
1.Products with high precision internal resistance,Voltage,automatic test system.
2.The device is set according to the settings Internal resistance voltage,
3. Accurate delivery of cores to designated gears.
4 .Hopper put in 500 pcs High production efficiency easy to operate.
5.Stick Barley paper 4200pcs/Hour high stability.
6.Can be docked with automatic veneer cushion machine,Saving labor.
Specifications
| Voltage | AC220V,50Hz |
| Compressed Air | 0.4-0.7Mpa |
| Internal Resistance | Hioki3561 or HK3561 |
| Measurement of Internal Resistance | Range:0-60m Accurace: 0.5% rdg Resolving power: 0.1m |
| Internal Pressure Measurement | Range:0-10V Accurace: 0.015% rdg Resolving power: 0.1mV |
| Size(L x w x H) | 980X520X1360mm |
| Production Efficiency | 4200PCS/hour, single pad 1pcs |
| Control Device | 7 inch Touch Screen |
| Sorting Speed | 60-70PPM |
Equipment Configuration
| Serial No. | Spare Parts | Brand |
| 1 | Air Cylinder | SMC,CKD |
| 2 | Solenoid Valve | SMC |
| 3 | Linear Guide Rail | TPI |
| 4 | Electric Relay | OMRON |
| 5 | PLC | TouchWin |
| 6 | Inductorium | OMRON,SUNX |
| 7 | Button | Goncon |
| 9 | Pilot Lamp | Goncon |
| 10 | Tester | Hioki3561 or HK3561 |
